The AWARDS Medical module Laboratory Locations feature is an optional database enhancement that enables users to enter, update, and delete laboratory locations information, as well as to view read-only laboratory locations reports.
NOTE: The facilities included in laboratory locations list are those from which a laboratory selection will be made during the process of entering, updating, and/or viewing diagnostic test information for programs using that optional functionality.
Required Permissions
Because the Laboratory Locations feature is optional, it is not automatically available in all databases. When requested, it is turned on behind-the-scenes in AWARDS by Foothold Technology for individual program types. (Contact the Help Desk to provide access to specific program types in your AWARDS database.) Staff in programs for which the Laboratory Locations feature has been turned on must have the following permissions in order to use it:
Program Chart Access
Display Any Chart Records Buttons
Display Chart Records Medical Button
IMPORTANT! While you must have chart access to at least one program configured to have the Laboratory Locations feature in order to use that feature, the laboratory locations list itself is shared by all programs in AWARDS. Changes or additions made to locations information are reflected for all programs using this functionality, regardless of the particular program(s) to which you have chart access.
NOTE: Permissions are assigned using the Permissions Maintenance feature. If you do not have access to that feature and need a permission listed here, please contact your supervisor or your local Help Desk for assistance.
Click-by-Click Instructions
Working with Laboratory Locations
To enter, update, or delete a laboratory location, complete the following steps from the AWARDS Home screen:
- Click Charts from the left-hand menu, and then click Medical. The Medical fly-out menu is displayed.

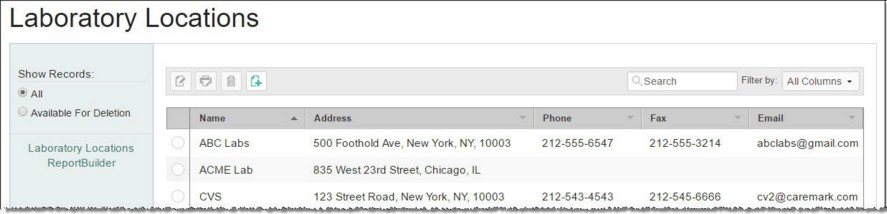

- Click Laboratory Locations. The Laboratory Locations index page is displayed.
TIP: When working on the index page, records are easily accessible using the following tools and navigation features:
"Show Records" display options - By default the index includes all laboratory locations. To limit display to only those records that can be deleted, click the Available For Deletion radio button under "Show Records" in the left-hand menu. Laboratory locations can only be deleted if they are not linked to a diagnostic test in the Diagnostic Tests feature.Sorting options - By default, records in the index are sorted alphabetically by laboratory location name. Click a column header in the data table to sort the index by a different type of data. Click the heading again to reverse the sort. Navigation options - 10 records are displayed on the page by default. To access records on subsequent pages of the index (when applicable), click the arrows in the bottom-right corner of the table. To display 25 or 50 records at a time, click the Show drop-down to the left of the record count, also in the bottom-right corner, and make a selection.
Once you select records on the index, a count of how many total records are selected is displayed in the action bar. Selections are maintained while moving from one page of the index to the next; meaning, you can select records on the first page (showing records 1-10 by default) and move to the next page (displaying records 11-20) without losing the selections made on the first page. Links for Show all selected records and Uncheck All are available beneath the index table for easy navigation.Search and filtering options - A Search field is available on the action bar along with a corresponding Filter by drop-down list. To search the contents of the index (including those records not currently displayed on the page), enter a value in the Search field. The index is automatically updated as you type. To further narrow your search, use the Filter by selection to indicate whether the search should look at data in "All Columns" (the default) or a specific column.ReporBuilder access - The Laboratory Locations ReportBuilder link on the left-hand menu bar provides a shortcut to access the ReportBuilder for this feature. For instructions on using that ReportBuilder, see below.
In addition, note that laboratory locations are shared across ALL programs in AWARDS.
- At this time, complete one or more of the following tasks as needed:
Add a new laboratory location record - To do so, click the add new icon from the action bar above the laboratory locations table. A new data entry page is displayed. Configure the fields and options on this page as necessary, and then click Save. The laboratory location record is saved, and a confirmation page is displayed.
TIP: For more information on each field/option available on the data entry page, see below.
Update an existing laboratory location record - To do so, click the record to be updated, or click the checkbox to the left of that record and then click the edit icon from the action bar above the laboratory locations table. The data entry page is displayed. Make changes to the information on this page as needed, and then click Save. The laboratory location record is saved, and a confirmation page is displayed.
TIP: For more information on each field/option available on the data entry page, see below.
View or print an existing laboratory location record - To do so, click the checkbox to the left the record to be viewed/printed, and then click the view icon from the action bar above the laboratory locations table. A read-only version of the record is displayed and can be printed as needed using your browser's print option.
Delete an existing laboratory location record - To do so, click the checkbox(es) to the left of the record(s) to be deleted, and then click the delete icon from the action bar above the laboratory locations table. A confirmation message is displayed. Click OK to proceed with the deletion. The selected record(s) are deleted and the updated index is displayed.
TIP: Prior to selecting records to be deleted, click Available for Deletion from the left-hand menu. The index is automatically refreshed to show only those records that can be deleted (those that are not linked to a diagnostic test in the Diagnostic Tests feature).
Return to the Laboratory Locations index - To do so, click the To Index icon from the action bar while working in a laboratory location record to return to the index page. You can also return to the index page at any time by clicking Laboratory Locations from the breadcrumbs trail below the AWARDS navigation bar.
The process of working with laboratory locations is now complete.
Using the Laboratory Locations ReportBuilder
The Laboratory Locations ReportBuilder can be used to generate customized reports of laboratory locations information. To generate and save a Laboratory Locations ReportBuilder report that can be re-run in the future, to generate a single-use report, or to use and/or update an existing report format to generate a report, complete the following steps from the AWARDS Home screen:
TIP: The following instructions detail accessing the Laboratory Locations ReportBuilder from directly within the Medical module. This report is also available in the AWARDS Reports module, where it can be bookmarked for easy access.
- Click Charts from the left-hand menu, and then click Medical. The Medical fly-out menu displayed.
- Click Laboratory Locations. The Laboratory Locations index page is displayed.
- Click Laboratory Locations ReportBuilder from the left-hand menu. The Laboratory Locations ReportBuilder Settings page is displayed.
- Leave the Provide ExportBuilder Options checkbox unchecked. It is NOT relevant to report generation.
NOTE: This option is used to provide access to an ExportBuilder corresponding to the ReportBuilder with which you are working. AWARDS ExportBuilders - which are designed for use by individuals who are familiar with export files and formats, their design, and setup - harness the power of ReportBuilder functionality and take it a step further to meet a variety of outside reporting needs. With ExportBuilders, users can create customized data reports as they would with the ReportBuilder itself, and from those reports generate export files of a number of different types - CSV, TXT, XLS, or XML. Exported files can be saved to your computer, then uploaded into other data collection systems and/or worked with in other applications as needed. Additionally, as can be done with ReportBuilders, ExportBuilder formats can be saved and shared for future use.
The instructions provided here detail use of the Laboratory Locations ReportBuilder only, not the corresponding ExportBuilder. For more information on using ExportBuilders, click here.
- If you would like the report (both its content and an Excel file version) to be sent to your AWARDS Messages module upon its completion, click the Send in AWARDS Message checkbox. When this option is selected, you need not wait for the report to generate, and can navigate away from the ReportBuilder after finishing the configuration process (in step 7 or 14) - this can be a time-saver, especially when working with reports containing large amounts of data that might otherwise take a while to display in AWARDS.
NOTE: When using this option the report will remain in your messages for one month, after which time it will be deleted. (The exact date of deletion will be displayed in red at the top of the report message for your reference.) If you know you will need the report content after that time, be sure to download the Excel file (Excel File.zip) or HTML content (Report Content.html) attached to the report message. If you don't download one of these attachments before the message is deleted, you will need to manually re-generate the report if you need access to it in the future.
- Use the Select a saved report format drop-down options at the bottom of the page to specify whether you will be generating the report from scratch or using a previously saved report format. Available choices are to:
Use a previously saved report format - To generate the report using a previously created and saved format, select that format from this drop-down. When using this method, you can immediately generate the report without changing any settings. Alternately, you can first review and modify the settings of the format by checking off the available Provide option to modify settings of saved report format checkbox.
Start from scratch, without using a previously saved report format - To create your own report format for single-time use or for saving and later re-use, leave the saved report format drop-down blank.
NOTE: If you (or another user) have previously saved a default report format for this ReportBuilder and program, that format is pre-selected here. Make changes to the selection as needed, or leave it at its default value.
- Click CONTINUE.
If you are using an existing report format and have NOT chosen to view/modify the settings of that format, you are now taken directly to the report page. Continue with step 15.
NOTE: If you chose to send the report to yourself via the Messages module (in step 5), a notice is first displayed on the page to let you know that report generation is in process and that the report will be sent to your Messages module upon completion. You can then navigate away from the page, or wait for the report to complete and then proceed with step 15. If you did NOT set that option, you can do so now by clicking Send to AWARDS Messages.
In all other instances, the Options page is displayed. Continue with step 8.
- The Options page contains a list of client and laboratory location-related variables. Click the checkbox next to each variable to be included in the report, and/or use the available Check All option as needed.
- Click CONTINUE. The Report Options - Continued page is displayed.
- Configure the options in the "Filter Options" portion of the page as necessary to adjust the scope of the report contents. Set the "Show Individual Detail" and/or "Summary Tables" options to adjust the way in which the contents are displayed.
TIP: Individual detail report options and/or summary table selections must be set before the report can be generated.
- To save the report settings so that this report can easily be re-run in the future, click SAVE REPORT FORMAT. The Save Report Format dialog box is displayed.
TIP: If it is not necessary to save the report format and you wish only to view the report contents, please skip to step 14.
- Configure the fields and options on this dialog box to indicate the specifics of how the format should be saved.
TIP: For more information on using the save report format options, please click here.
- Click Save Report Format. The report format is saved and the Report Options - Continued page is re-displayed.
- Click DISPLAY REPORT. The report is generated and displayed on the ReportBuilder page.
NOTE: If you chose to send the report to yourself via the Messages module (in step 5), a notice is displayed on the page to let you know that report generation is in process and that the report will be sent to your Messages module upon completion. You can then navigate away from the page, or wait for the report to complete, and then proceed with step 20. If you did NOT set that option, you can do so now by clicking Send to AWARDS Messages.
- At this time individual detail and/or summary table content can be hidden or sorted as needed. The report can also be printed or exported to Microsoft Excel. For more information on working with ReportBuilder report contents, please click here.
NOTE: When working with report data, please keep in mind that when a report is long enough to require you to scroll down the page to view all of its content, the header row of the data table (individual detail and/or summary) "freezes" at the top of the page. Similarly, when printing a report that covers more than one page, the header row of any tables split between pages is shown at the top of each page.
The process of generating a new Laboratory Locations ReportBuilder report is now complete.
A Closer Look @ Fields & Options
NOTE: A gear icon
next to a field or option in this list indicates that it is optional (and therefore not automatically available in all AWARDS databases). For more information on the ways in which this data entry page can be configured, see the Laboratory Locations portion of the Medical Module - Implementation Requests Form. To request some or all of the configuration options detailed there, complete the form and submit it to requests@footholdtechnology.com.
Address / Address 2 / City / Country / County / State / Zip
In these fields type or make changes to the facility's address, including street address, city, country, county, state abbreviation, and zip code.
In this field, type or make changes to the email address at which the facility can be reached.
Facility Name
In this field, type or make changes to the name of the laboratory location / facility.
Fax
In this field, type or make changes to the facility's 10-digit fax number.
Medical Director
In these fields type or make changes to information about the facility's medical director, including title, first, last, and middle names, and suffix.
Medical Director ID
In this field, type or make changes to the ID for the facility's medical director.
Phone
In this field, type or make changes to the facility's 10-digit phone number, followed by an extension if applicable.
Enhancement Request Forms
As noted above, the Laboratory Locations functionality is optional. To request that it be turned on in your AWARDS database, and to specify how it should be configured there, download and complete the following request form, and then submit it to requests@footholdtechnology.com.
